GBR

This machine suitable for cotton & Man made fibres. Any type of Beaters can be supplied with this machine. Micro dust removal fan provided seperately.

STEP CLEANER

This machine UT40 model having six beaters and also supplied with 3 or 4 beaters. Micro dust removal can be supplied on request.

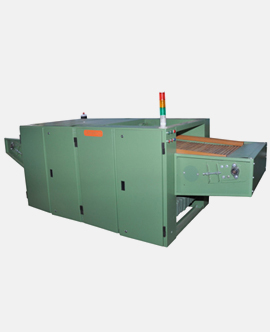

ROVING END OPENER

RK MACHINE

Having krishner Beater. Adjustable grid segment can be adjusted distance between grid bars and distance between to grid bars.

DUSTEX

The machine having three fans. The accelating flap door controlled by cam arrangement with gear box drive and motor.

CHUTE

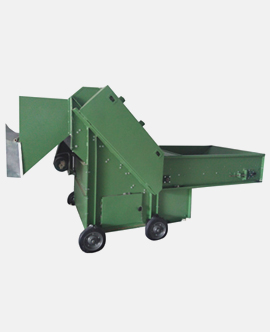

PRE - OPENER

The machine having three beater with micro dust collection.

AXIAL-CLEANER AX1000– EFFICIENT AND RELIABLE PRE-CLEANING

The Axial-cleaner cleans the microtufts in the first cleaning stage immediately. A machine production of up to 750 kg/h is achieved. Cleaning is performed, therefore very gentle to the fibers and at the same time efficient. GRID Bar Arrangements enables waste volume and waste composition to be adjusted manually. This ensures a high level of raw material utilization.

Economy

• The Axial cleaner is designed for output of up to 750 kg/h.
• With efficient cleaning.
• The energy consumption required for waste transport is low as a result of intermittent extraction.

Quality

• Fiber-preserving cleaning of the raw material due to free fiber flight and the use of adjustable grid bars.
• The large dedusting surface ensures intensive dedusting even at high production performance.
• Simple visual check permits rapid quality assessment of waste composition.

BE BEATER WITH RESERVE BOX & CONDENSOR

Combo

• CONDENSOR + RESERVE BOX WITH FEED CONTROL + BE BEATER

Condensor

• Type: LVSA
• Width: 1000mm
• Installed motors (0.75/ 5.5Kw)

Feed Trunk

• Feed Trunk with reserve box, Feed cotton evenly to the next stage.
• It consists of two feed roller and photo cell unit to feed evenly.
• Photo Cell measure the cotton level and intimate to the Previous Machine.

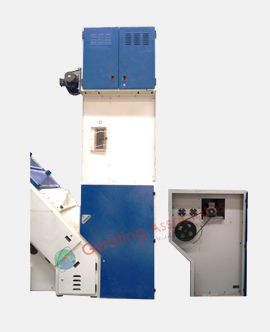

Be Beater

• Working width: 1000mm & Production : 750 kgs/Hr
• The degree of opening and trash extraction can be adjusted for a very wide range of cotton types and grades by changing the speed of beater, and the profile of grid to beater.
• Removes heavy impurities
• Maximum trash extraction.
• Simple efficient unit suitable for all classes of cotton.
• Design features facilitate integration with Centralized waste extraction system.
• Adjustable grid bar profile to optimize cleaning efficiency.

COMPACTOR

Compactor Designed for waste of blow room cards / combers.
Compactor is able to compact the waste or fibers from the system. It is able to filter coarse dust and fibrous waste from the air stream. This continuous process compacts the material and pushes the diaphragm open. The material is discharged into a suitable container or bag. Compactors ensures lower handling and storage cost. Rugged Construction with the most efficient screw and gear function sees our compactors use in Our compactors have a long trouble free life with a smooth drive giving value for money

• Blow room dropping
• Flat waste of cards
• Comber waste

CONDENSOR

• Type: LVSA
• Width: 1000mm
• Installed motors (0.75/ 5.5Kw)
• Gauge Provide perfect micro dust removing from feeding material.
• Heavy Duty Condensor

GBSRS

GBR + STEP CLEANER = GBSRS
A Combo of GBR and Stepcleaner Machine is known as GBSRS

GBR

• Designed as Heavy Duty GBR
• Working Width: 1200mm
• Feed Conveyor length : 2.5 M
• Production : 750 Kgs/Hr
• Compressed Wooden Lattice and inclined Lattice
• Evener Beater with manual adjustment for Production
• Pin Beaters installed
• Highest flexibility on smallest space by direct feeding of Materials
• Production capacity up to 750 kg/h
• Suited for opening of all Cotton, Cotton Waste & man-made fibres etc at medium production rates.
• Uniform feeding possible
• Specific mixing of different material flows possible with additional trunks

GRAVITY TRAP / HEAVY MATERIAL DROPPING

• The object of the gravity trap is to extract the seeds stones and other heavy impurities from the cotton. Seeds in cotton must be removed, if not it causes so many difficulties in subsequent spinning preparatory process. For Ex, Seeds get crushed under the calendar Roller in Blow Room & expel seed oil and affect the lap quality.
• At carding, metallic wires get loaded with seed coats which affect the carding quality.
• It can be installed at any point where the material is accelerated by both gravitational or beating force and where further flow of material takes place by air suction.
• Under these condition, if the air inlet to the suction system is provided the delivered material has a tendency to be thrown out of the air inlet, it is possible to effect the seeds and heavy particle against the resistance of incoming air.

SRS6 (Heavy Duty)

CONDENSOR + FEED TRUNK + BE BEATER + STEP CLEANER = SRS 6 (Heavy Duty)

Step Cleaner

Type : Loose feeding pin opener

Object : To open & clean the cotton

The rapid revolution of 6 beating cylinders (multiple beater) and beating of the spikes on cotton against grid bar, centrifugal force and gravity combine effectively to open the cotton and remove the heavier impurities. Heavier impurities, dust & dirt particles, short fibres, etc, from the cotton are passed through the spacing of the bars and is collected outside the grid bar.

Micro dust Extraction

Micro dust & fine impurities have deleterious effects on working environment in Textile mill and affect the yarn quality & subsequent processing specially in open end spinning. Here, dust which is liberated by the action of multiple beater, is transferred through the perforated screen of the dust hood and removed by an air stream. Rapidly rotating six beating cylinder takes the tufts upwards & after opening and cleaning, the cotton from the last beating cylinder is conveyed pneumatically to the next machine through outlet pipe.

Alient features of step cleaner are

• Effective Micro dust Extraction by dust hood.
• Working width: 1000mm & Production : 750 kgs/Hr
• Individual Micro Dust Collection Chambers Provide for effective cleaning of Cotton
• The degree of opening and trash extraction can be adjusted for a very wide range of cotton types and grades by changing the speed of beater, and the profile of grid to beater.
• Action of multiple beater and grid bars Removes heavy impurities
• Maximum trash extraction.
• Simple efficient unit suitable for all classes of cotton.
• Design features facilitate integration with Centralized waste extraction system.
• Adjustable grid bar profile to optimize cleaning efficiency.
